BELT GRINDING MACHINE B550 / BB550
TECHNICAL DATA
BELT GRINDING ARM
grinding arm dimensions |
750×160 mm |
grinding belt |
2000×150 mm |
dimensions of the angle table |
210×160 mm |
angle table inclination |
45° |
MOTOR
voltage |
400 V |
motor power |
4,0 kW |
revolutions per minute |
3000 U/min |
EXHAUST SYSTEM
socket diameter bottom |
100/120 mm |
required capacity |
814 m³/h |
flow rate |
20 m/s |
SWITCHING UNIT
main switch |
✓ |
emergency stop |
✓ |
switch for rotation to right/left |
✓ |
DIMENSIONS
space requirement
|
150x120x200 cm |
space requirement
|
150x150x200 cm |
WEIGHT
B-version |
280 Kg |
BB-version |
320 Kg |
simple operating elements
BELT GRINDING MACHINE B550 / BB550
CUSTOMISED OPTIONS
OPTIONALLY AVAILABLE
stop rail for longitudinal grinding |
✓ |
stepless speed regulation |
✓ |
machine lamp |
✓ |
special voltage |
✓ |
special paint |
✓ |
FURTHER INFORMATIONEN
WELL THOUGHT-OUT CONSTRUCTION

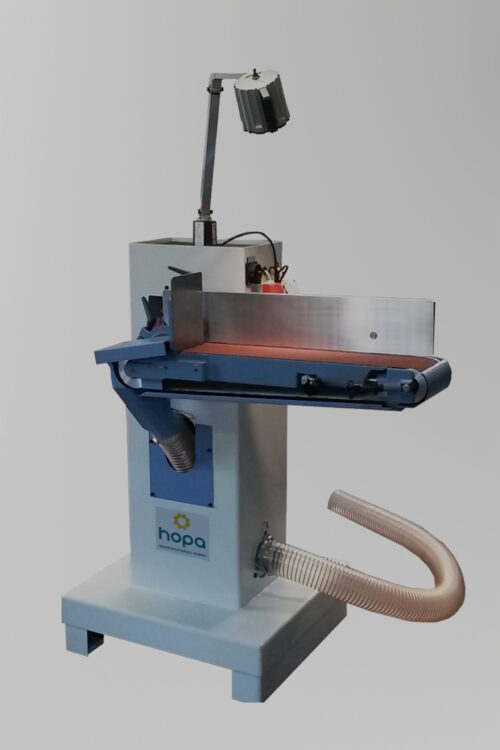

BELT GRINDING ARM
Surfaces and edges can be ground and deburred on the belt grinding arm. Depending on the size and handiness of the workpieces, the belt sanding arm is adjusted horizontally or vertically.
On the BB550 belt grinding machine, two belt grinding arms can be used for grinding, possibly with grinding belts of different grits.
MACHINE TABLE
On the smaller angle table, which can be tilted up to 45°, smaller workpieces are made at an angle or at 90° angle, ground. For right-angled sanding of larger parts, the stop rail (optional) for longitudinal grinding is used.
SWICHTING UNIT

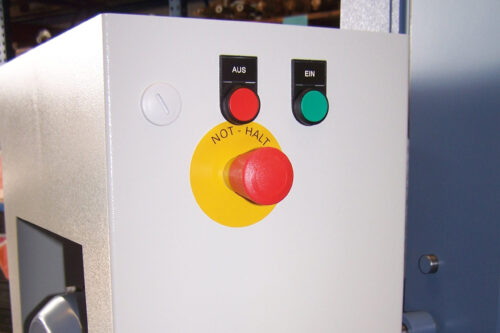

The circuit consists of a clearly arranged and conveniently placed control panel. The panel has a main switch as well as an on-off button and an emergency stop button. At the customer’s request, an additional foot emergency stop can be installed.
