DISC GRINDING MACHINE S950 / SS950

TECHNICAL DATA

WORK AREA
table length
1250 mm
table width
570 mm
table width in front of the disc
400 mm
table under centre of disc
50 mm
table tilt motion down/up
45/30°
tilt motion with fine adjustment
reading accuracy
6 min.
zero lock
table swivel out
90°
table working height
900 mm
GRINDING DISC
disc diameter
900 mm
S version
1 disc
SS version
2 discs
disc replacement
MOTOR
voltage
400 V
motor power
4 kW
revolutions per minute
750 U/min
automatic brake (brake force regulator)
EXHAUST SYSTEM
socket diameter bottom
100/120 mm
socket diameter top
120 mm
required capacity
814 m³/h
flow rate
20 m/s
SWITCHING UNIT
main switch
emergency stop
switch for rotation to right/left
DIMENSIONS
space requirement of the S version
140x100x180 cm
space requirement of the SS version
140x130x180 cm
WEIGHT
S version
410 Kg
SS version
510 Kg

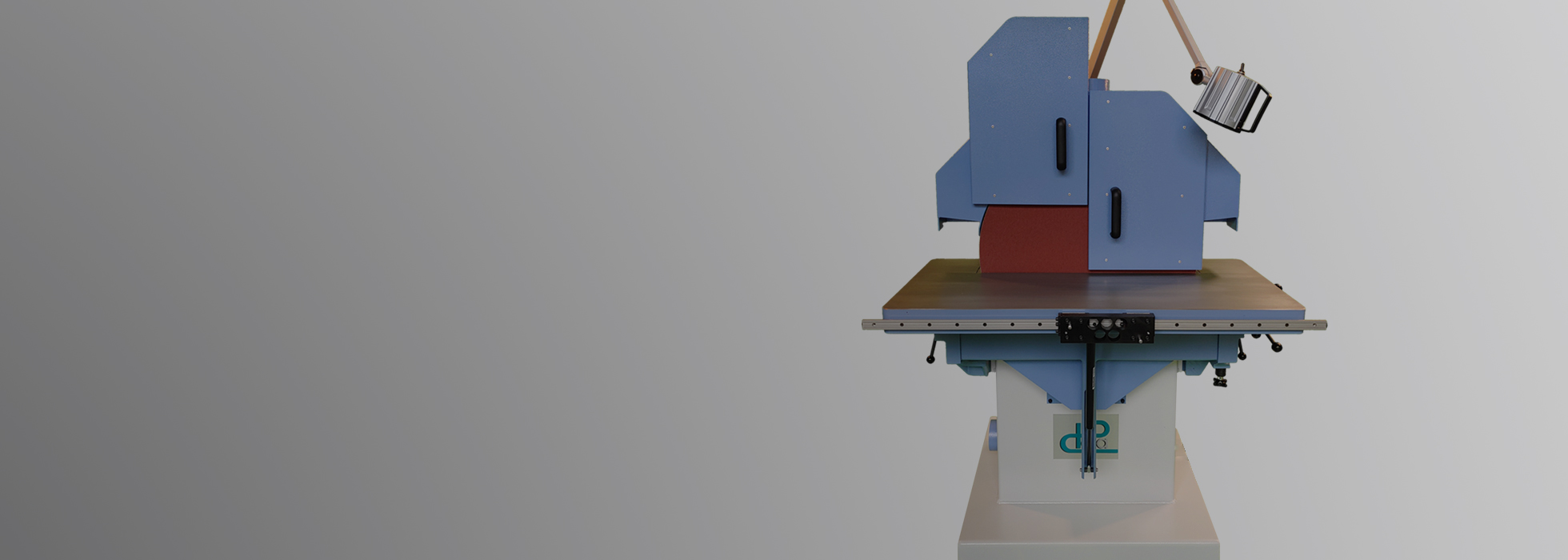

S550-S950
SS550-SS950
SS950 with second disc
Rundschleifeinrichtung
cylindrical grinding device

DISC GRINDING MACHINE S950 / SS950

CUSTOMISED OPTIONS

OPTIONALLY AVAILABLE
angle device, adjustable on both sides
45°
cylindrical grinding device
30-600 mm
stepless speed regulation
digital display for table tilt motion
machine lamp
extendable workpiece support
special voltage
special paint

FURTHER INFORMATION

WELL THOUGHT-OUT CONSTRUCTION

MACHINE TABLE

The machine table is made of cast iron and is mounted on both sides. The grinding wheel is also enclosed laterally by the machine table. This makes it easy to grind angled parts.

The machine table is positioned 50mm under the grinding centre, which creates a larger working area. An extendable workpiece support is available as an option.

ANGLE DEVICES (OPTIONAL)

Version 1
The angle device can be moved in a groove over the entire length of the machine table. It can be adjusted 45° on both sides.

Version 2
This angle device is mounted at the front of the machine table and has a quick lock for the most common angles. It can be moved over the entire length of the table and is adjustable 45° on both sides.

SWITCHING UNIT

A brake force control is built into the circuit as standard, in accordance with the regulations in EU countries. The operating switch can be used to adjust the clockwise or anticlockwise rotation of the grinding wheels. If desired, the revolution per minute can also be adjusted steplessly.

The switch housing is equipped with a rubber-coated shelf.

TILTING DEVICE

The tilting device allows infinitely variable adjustment of the machine table (45° downwards as well as 30° upwards). The tilting is supported by a shock absorber. The reading accuracy is 6 minutes.

The distance between the grinding disc and the machine table remains constant.

DISC GRINDING MACHINE S950 / SS950

MORE DETAILS

Winkelanschlag_in_Nut
angle device in groove
Winkelanschlag_vorn_am_Tisch
angle device at front of table
Schwenksegment_Handrad
tilting segment with handwheel
Tischneigung_nach_oben
table tilt up
